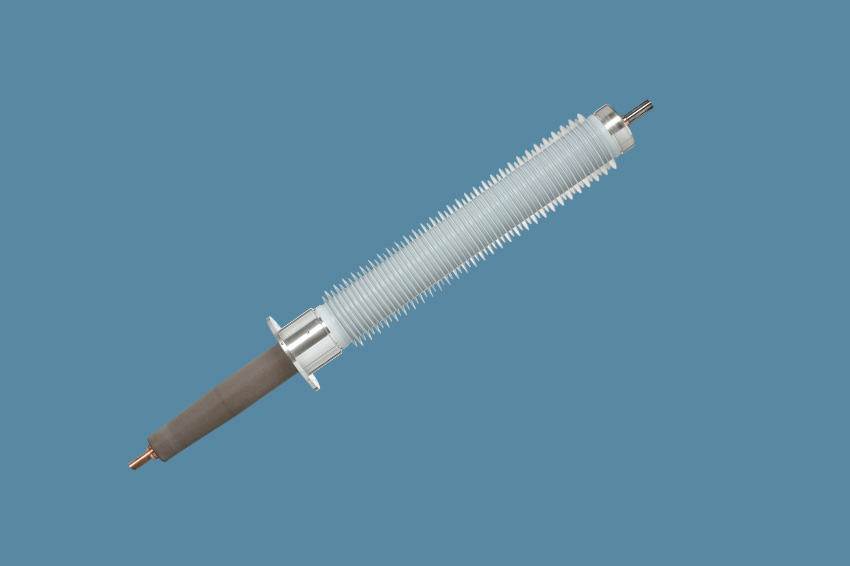

Bushings connect the overhead lines to the transformers and provide a safe, insulated pathway for electrical conductors to pass through the bushing casing, preventing direct contact with grounded components. This ensures both operational safety and system reliability.
Insulation paper is essential for maintaining the dielectric properties. Both oil-impregnated (OIP) and resin-impregnated (RIP) paper bushings offer excellent dielectric strength with low dissipation factor. Resin-impregnated paper bushings are often preferred from an environmental perspective.
Electric insulating kraft paper for bushings
- Made from extremely pure and clean pulp produced by Ahlstrom in Sweden
- Unique insulation properties to minimize power loss
- All papers are produced for precise customer specifications and according to international standards
- All papers are tested during and after production to ensure best quality
- Available as Oil Impregnated Paper (OIP) and Resin Impregnated Paper (RIP)
Unveiling the Benefits of Ahlstrom Elektro-Tek™ for bushings
-
Plain paper
Plain paper for OIP bushings
-
Creped paper
Creped paper for RIP bushings
-
Certifications
Certified according to FSC®, PEFC™, ISO 9001:2008, ISO 14001:2004 and ISO 45001:2018
And there's more
Ahlstrom’s electrotechnical paper offering covers a wide range of end-use applications such as power transformers, instrument transformers, distribution transformers, bushings and cables.
Ahlstrom uses fiber from responsible and legal sources, and all
products qualify for Chain-of-Custody Forestry Credits and Certification.
